Pvc Coated Galvanized 2mm Gabion Wall Retaining Wall Hexagonal Wire Mesh

Brand Name : SHUXIN

Model Number : GABION

Certification : CE SGS ISO COC

Place of Origin : CHINA

MOQ : 10 pc

Price : Negotiated

Payment Terms : L/C, T/T, Western Union, MoneyGram, D/P, D/A

Supply Ability : 30000 Square Meter/Square Meters per Day

Delivery Time : 7 work days

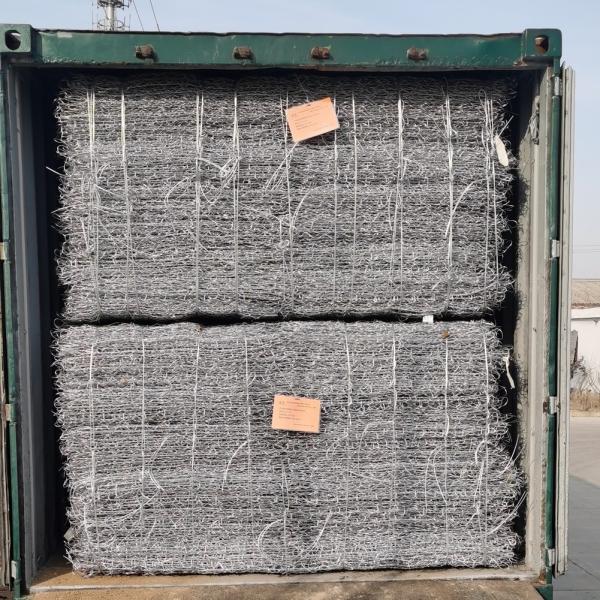

Packaging Details : Packed in bundles.We have a lot of stock and can ship quickly.

Material : Low-carbon Steel Iron Wire Mesh

Surface : Galvanized/PVC Coated

Application : Stone Cage

Hole Shape : Hexagonal

Wire Gauge : 2.0-4.0mm

Hole size : 60*80/80*100/100*120 mm

Contact Now

PVC Coated And Galvanized Hexagonal Wire Mesh Gabion Basket For Retaining Wall In The Philippines

Hexagonal Wire Mesh Gabion Basket are boxes which are engineered from triple / quintuple twisted hexagonal woven wire mesh. It is usable for the control of rivers and floods, flood discharge dam and diversion dam, and rock slope protection. The management and production system is certified with ISO9001.

Introduction of Hexagonal Wire Mesh Gabion Basket

Gabion box (mesh size):

80*100mm

100*120mm

 Mesh wire Dia. 2.7mm zinc coating:60g,245g, ≥270g/m2
Edge wire Dia. 3.4mm zinc coating:60g,245g, ≥270g/m2
Tie wire Dia. 2.2mm zinc coating:60g,≥220g/m2

Gabion mattress(mesh size):

60*80mm

 Mesh wire Dia. 2.2mm zinc coating:60g, ≥220g/m2
Edge wire Dia. 2.7mm zinc coating:60g,245g, ≥270g/m2
Tie wire Dia. 2.2mm zinc coating:60g, ≥220g/m2
Available gabions of special sizes Mesh wire Dia. 2.0~4.0mm superior quality,competitive price and considerate service
Edge wire Dia. 2.7~4.0mm
Tie wire Dia. 2.0~2.2mm

Applications

Retaining wall
Applications Control and guide of water or flood
Applications Flood bank or guiding bank
Applications Preventing of rock breaking
Applications Water and soil protection
Applications Bridge protection



Pvc Coated Galvanized 2mm Gabion Wall Retaining Wall Hexagonal Wire MeshPvc Coated Galvanized 2mm Gabion Wall Retaining Wall Hexagonal Wire MeshPvc Coated Galvanized 2mm Gabion Wall Retaining Wall Hexagonal Wire MeshPvc Coated Galvanized 2mm Gabion Wall Retaining Wall Hexagonal Wire MeshPvc Coated Galvanized 2mm Gabion Wall Retaining Wall Hexagonal Wire MeshPvc Coated Galvanized 2mm Gabion Wall Retaining Wall Hexagonal Wire Mesh

Protection engineering of seaside area
Stone Filled Gabion Box Advantage:
Flexibility: Flexibility is an important benefit of any gabion structure.
Strength: Steel wire hexagonal mesh has strength and flexibility to withstand forces generated by water and earth masses, and the pervious nature of the gabion allows it to absorb and dissipate much of that energy..
Low cost: Gabion systems are more economical than rigid or semi-rigid structures for the following reasons:
Ecology: Gabions is an environmentally sensitive solution to slope stabilization.
Aesthetics: Gabions supporting vegetation has already been discussed
